1. Application

Suitable for peanut, soybean, sunflower, rapeseed, sesame, tea seed, walnut, olive,corn germ,moringa seed, safflower seed, seeds of hippophae rhamnoides and so on.

2. Characteristic

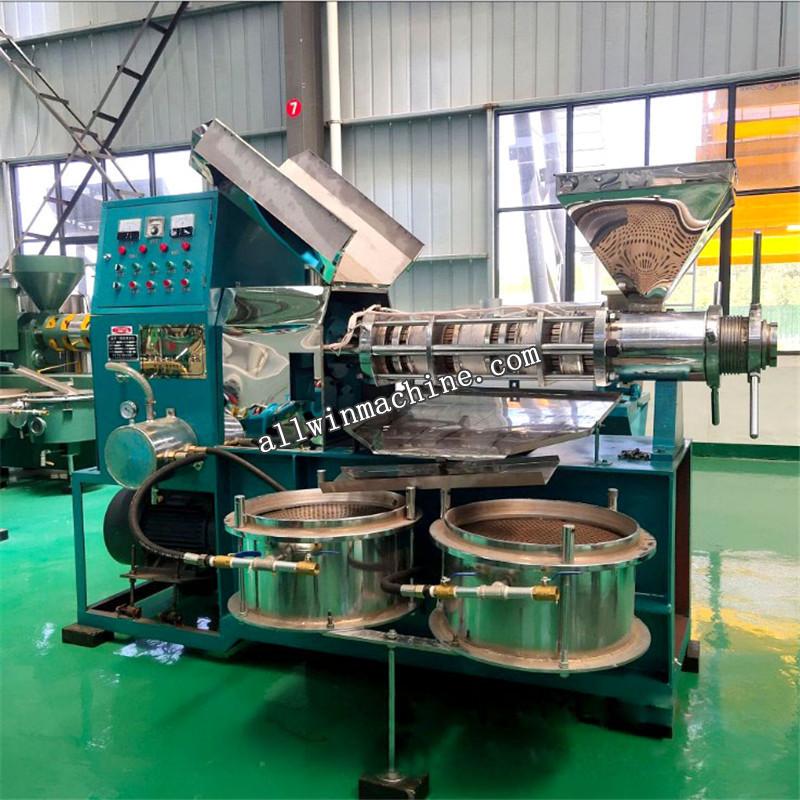

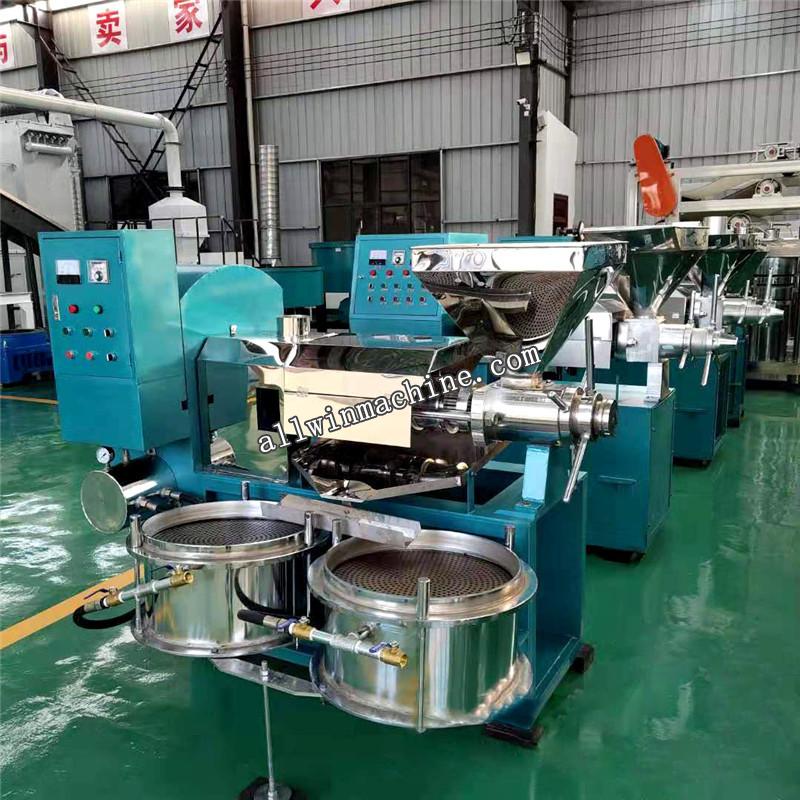

Automatic spiral oil press is mainly composed of electric control, automatic heating, adjustment,transmission and vacuum oil filter components.

3. Feature Principle and Structure:

Oil press machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm,resistance of curve teeth at press rings and extrusion friction between oil materials.

Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by 、extrusion theory, so it is also called as oil extruder or oil extrusion process.

4.Advantage

Oil press machine is fully adopted mechanical driven, it connects a series small oil processing equipment together to realize continuous oil extraction with easier operation and higher rate of oil yield.The oil press machine or you can say small oil pressing machine is able to process a great many of vegetable oil seeds, such as soybeans, peanuts, cotton seeds, sunflower seeds, sesame seeds,palm kernel, coconut etc. Small investment, fewer land space, labor saving and wide application, the small oil press machine is your first choice to start the oil making business.

All working processes are controlled by the controlling panel If one drum is full it would change to use the other and automatically put the oil out of the drum. Before pressing, some parts of the oil press machine such as the press chamber, press screw and press ring will be pre-heated.

During pressing, the press can filter the oil in due time. One operator is enough to get quality oil. Oil yield is higher than common oil press.

5. specification
