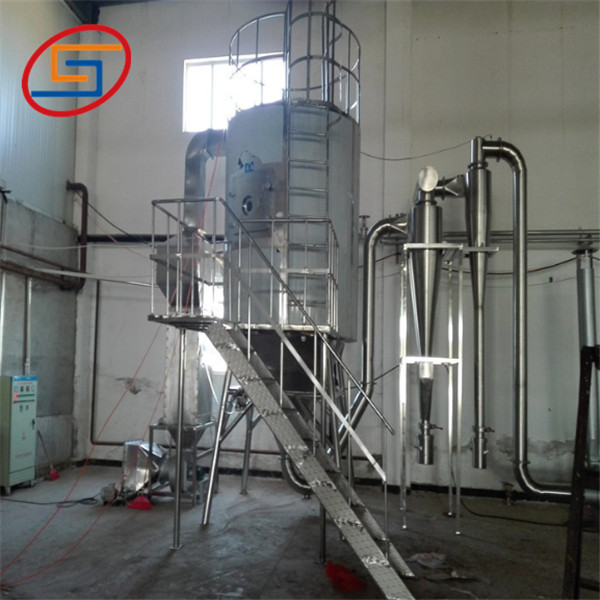

Spray dryer

Product description: spray dryer spray drying machine atomization dryer spray dryer spray drying machine atomization dryer
INQUIRY

Application

This machine is suitable for laboratory liquid material directly into micro-powder, without prior drying of the material is filtered, concentrated and pulverized all solution such as emulsions, suspensions with broad-spectrum applicability.This technique has successfully processed materials in the following areas:

Beverages • Flavours and Colourings • Milk and Egg Products • Plant and Vegetable Extracts • Pharmaceuticals • Heat Sensitive Materials • Plastics • Polymers and Resins • Perfumes • Ceramics and Advanced Materials • Soaps and Detergents • Blood • Dyestuffs • Foodstuffs • Adhesives • Oxides • Textiles • Bones, Teeth and Tooth Amalgam and many others. Most solutions and suspensions can be spray dried providing that the resulting product has the characteristics of a solid material.

Food Industry: whole milk powder, cocoa milk powder, milk substitute, egg white (yolk), etc. armpit prion, Oats, chicken juice, instant tea, seasoning meat, protein, soybean, peanut protein, protein hydrolyzate, etc. Corn syrup, glucose, pectin, maltose, potassium sorbate, pumpkin powder, etc.

Pharmaceutical products: medicine extract (herb extract), medicine colloid, yeast, vitamins, amylase, lipase, etc.

Plastics resin: AB, ABS emulsion, phenolic resin, dense plastic (urea) formaldehyde resin.

Chemical Industry: Sodium fluoride (potassium), alkaline dyestuff and pigment, dye intermediates, Mn3O4, formic silica acid, catalyst, sulfuric acid agent, amino acids, silica, etc..

Ceramic: aluminum oxide, ceramic tile material, magnesium oxide, talc, etc.

Principle:

After been filtered and heated,the air enters into the air distributor on the top of the drier.The hot air enters into the drying room in the spiral from uniformly.Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely mist liquid beads.Through very short time of contacting the heat air,the materials can be dried to the final products.The final products will be discharged continuously from the bottom of the drying tower and the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones.The waste gas will be discharged from blower.

Specification

Item\ Data\ Model	LPG
Item\ Data\ Model	5	25	50	100	150	200	500	1000
Inlet Temp. (°C)	130-300
Oulet Temp .(°C)	70-90
Evaporation (kg/h)	3-7	18-25	35-50	75-100	120-150	170-210	400-500	800-1000
Atomization Style	Compressed air	Power driven	Power driven	Power driven	Power driven	Power driven	Power driven	Power driven
Speed (r/min)	2500	18000-27000	18000-27000	18000-27000	15000-18000	15000-18000	12000-15000	12000-15000
Heat Resource	Power supply	Steam plus power supply	Steam plus power supply	Steam plus power supply	Steam plus power supply	Steam plus power supply	Steam plus power supply	Steam, hot air stove
Driving power (kW)	4.2	14	18	23	29	43	76	109
Heating Power(kW)	18	36	48	72	84	96	144
Dust Recovery Rate	≥95%	≥95%	≥95%	≥95%	≥95%	≥95%	≥95%	≥95%
Diameter of tower (m)	1.2	1.9	2.2	2.56	2.96	3.36	5.2	7.6
Height (m)	2.2	3.6	4.6	5.4	6.3	7	9.2	12.4
