Packing Machine

  • Automatic Liquid/ SaucePacking Machine

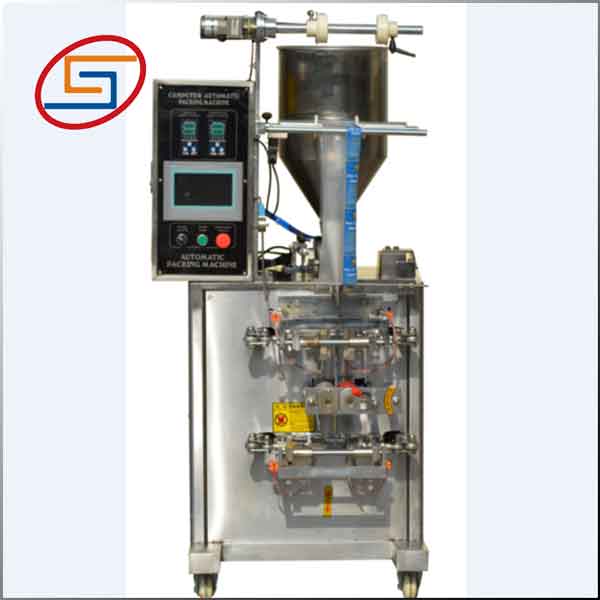

Automatic Liquid/ SaucePacking Machine

Automatic Liquid/ SaucePacking Machine

  • Product description: Automatic Liquid/ SaucePacking Machine Automatic Liquid/ SaucePacking Machine
  • INQUIRY

Usage:

This machine is mainly used for ketchup/tomato sauce, chili sauce, hotpot condiment, salad

dressing, cooking oil, honey, yogurt, fruit juice, wine, vinegar, shampoo, hair conditioner, facial

cream, medical and chemical liquid/paste quantitative packaging.

Features:

1. This machine can automatically complete the following work: piston pump measuring--coding (optional)--bag making--filling--sealing-- hole punching (optional)--counting.

2. Computer/PLC control system, photoelectric tracking, to maximize the whole machine’s control precision, reliability and the intellectualized degree.

3. Has fault display system, easy to operate and maintain.

4. Mixing device, hopper heating device as optional according to product character.

5. Machine shell and all food touching parts are made of stainless steel

Technical parameters:

Model

ALW-JY280

Packing speed

30-60 bags/min

Packing range

10-350ml

Film width

≤ 280mm

Making bag size

L: 50-280mm, W: 15-130mm

Packing accuracy

≤ ±1%

Power

1.6 KW

Power supply

AC220V, 50/60Hz

Seal type

3/4 sides seal, pillow seal

Net weight

300kg

Machine dimension

L600 × W790 × H1900mm
