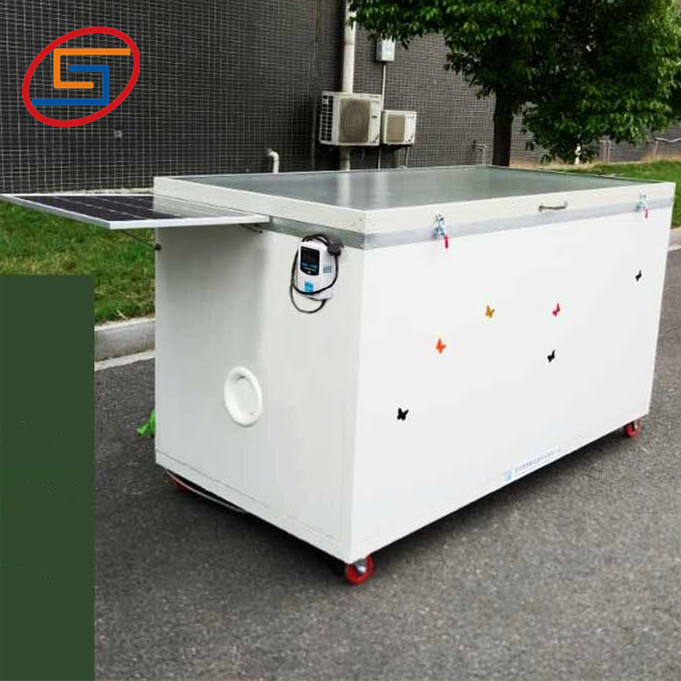

This is a new type of solar dryer . Its temperature can be controlled by intelligent temperature controller. It can be adjusted between 30-60 degrees. With a certain wind speed, it can be used to dry grain, corn, native products, tobacco, grapes, Almonds, alfalfa, Chinese herbal medicine, fish, bacon, etc.. In this way, it can avoid the external influences such as dust and rain, improve the drying speed, and the quality and color of the dried products are better. It is an economic green product suitable for the construction of new countryside.

Features:

Easy to move. With the casters, the manpower can be pushed, or dragged by small tractors, tricycles, lawn mowers, etc., and easily moved to a place with plenty of sun.

The temperature is adjustable to meet the needs of different materials. Between 30-60 degrees, it can be easily adjusted by intelligent temperature controller to meet the requirements of different materials for drying temperature.

Low cost and high efficiency.

Long service life, designed for up to fifteen years due to the absence of fragile components.

New type of solar dryer temperature can be controlled by intelligent temperature controller, with 50W photovoltaic panel to drive 12V DC fan, operating temperature range adjustable between 30-90 degrees.

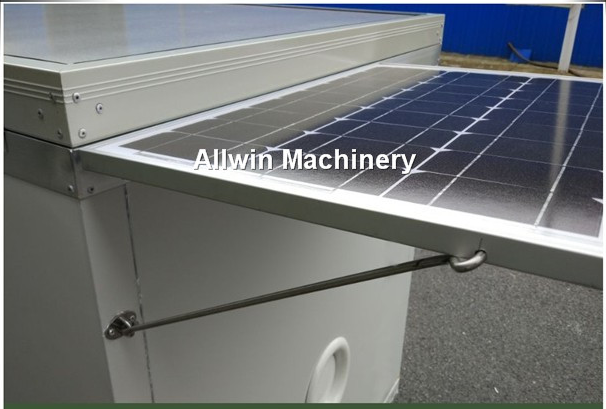

The size of the solar panel is 530*410mm. It is installed on the left side of the solar drying oven. It is folded at ordinary times. It is supported by the strut when it is used. The diameter of the stainless steel strut is 5mm and the length is 400mm. Long service life, design life of up to 25 years, is an economical green product. Free use of nature's rich solar energy resources, drying clean.

Product parameters

Heat absorption rate: 95%

Reflectivity: ≤5%

Thermal conversion coefficient: 0.85

Static temperature: 120 ℃ (irradiance 1000 W, ambient temperature 25 ℃)

Air volume: 10m3/hr

Working temperature: 30-70 ℃

Ambient temperature: -20- 150℃

Electric heating power (auxiliary): 1.8kw (220V AC)

Panel power: 50W

Dehumidification: Temperature and Humidity Controller (220V AC)

Assembly size: 2000mm*1000mm*1160mm (L * H * W)

Weight: 90kg

Processing capacity: 20-100kg (depending on material characteristics under standard lighting conditions)
