Agricultural processing machine

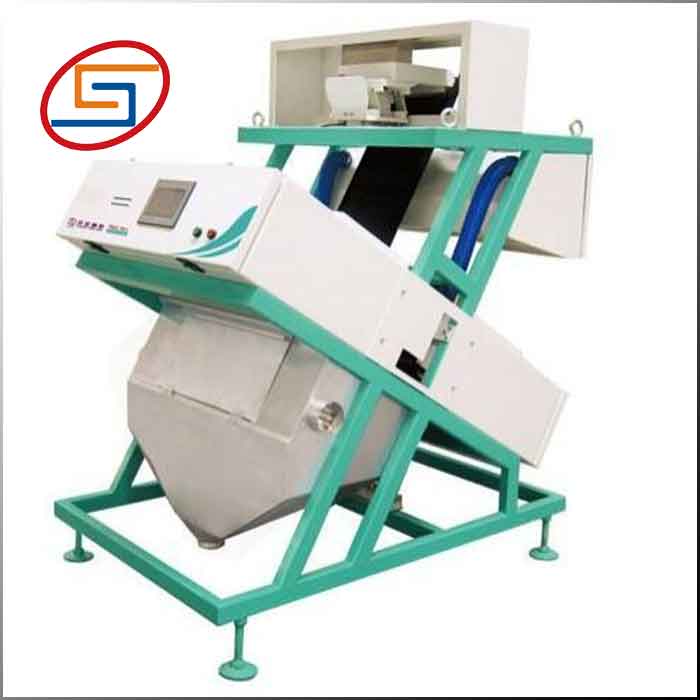

cereal color sorting machine

Product description: cereal color sorting machine cereal color sorting machine
INQUIRY

Color Sorting Machine Function:

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

Color Sorter Machine Characters:

1. High reliability Our rice color sorter is equipped with cooling system for longer service life and higher

stability. Reliable mechanical structure design, simple and effective electrical and optical system, and

optimized system structure greatly improve the reliability of the machine.

2. Advanced image acquisition and processing system Our rice color sorter uses high speed linear array CCD image sensor (2048 pixels) and high accuracy lens to realize image acquisition, which can detect 0.04mm2 heterochromatic regions. A specialized image processing system is used for high speed processing of spectral parameters and shape characteristics.

3. Intelligent image processing algorithm A intelligent algorithm based on color and shape is adopted, and special processing for yellows, stained, pinpoint blackheads etc. is carried out, thus increasing the accuracy of sorting.

4. High quality ejector .Our rice color sorter employs imported ejector for accurate, effective material

rejection and long service life5. High rejection rate Advanced image acquisition system, intelligent image processing algorithm, coupled with quality nozzle system, result in high rejection rate.

6. Simple operation Simple optical system, precise auto calibration system and user-friendly man-machine interface greatly simplify the machine debugging process and ensure ease of operation.

7. High flexibility, wide range of application Our color sorter is suitable for color sorting of different rice.

Various optimal working modes are available for different rice.

8. This type sorter also can be used for wheat, sesame, adlay seed and other smaller particles cereal.

Technical parameters
 Capacity: 0.5-1.5 Ton/ hour
 Voltage: AC220V/50HZ/60HZ
 Host Power: ≤ 2.2kw
 Color sorting accuracy: 99% -99.9%
 air compressor power: 5.5kw
 Air Consumption: <1.8 m³/min
 Air pressure: 0.6Mpa
 Full Color camera, double side,total:2cameras
 Camera: CCD camera
 chutes:1,"u"63channels per chute,Total Channels:
 Filter: SMC from Korea
 Light resource : LED
 Machine size : 1026mm*1570mm*1850mm
 Gross weight: 475 KG
