The machine is suitable for grinding and mixing corn, soybeans, wheat, barely and other cereal materials. By using this equipment, you can get mixed powder feed for poultry and animals, such as chicken, duck, sheep, goat, cow, pig, fish, rabbit, etc.

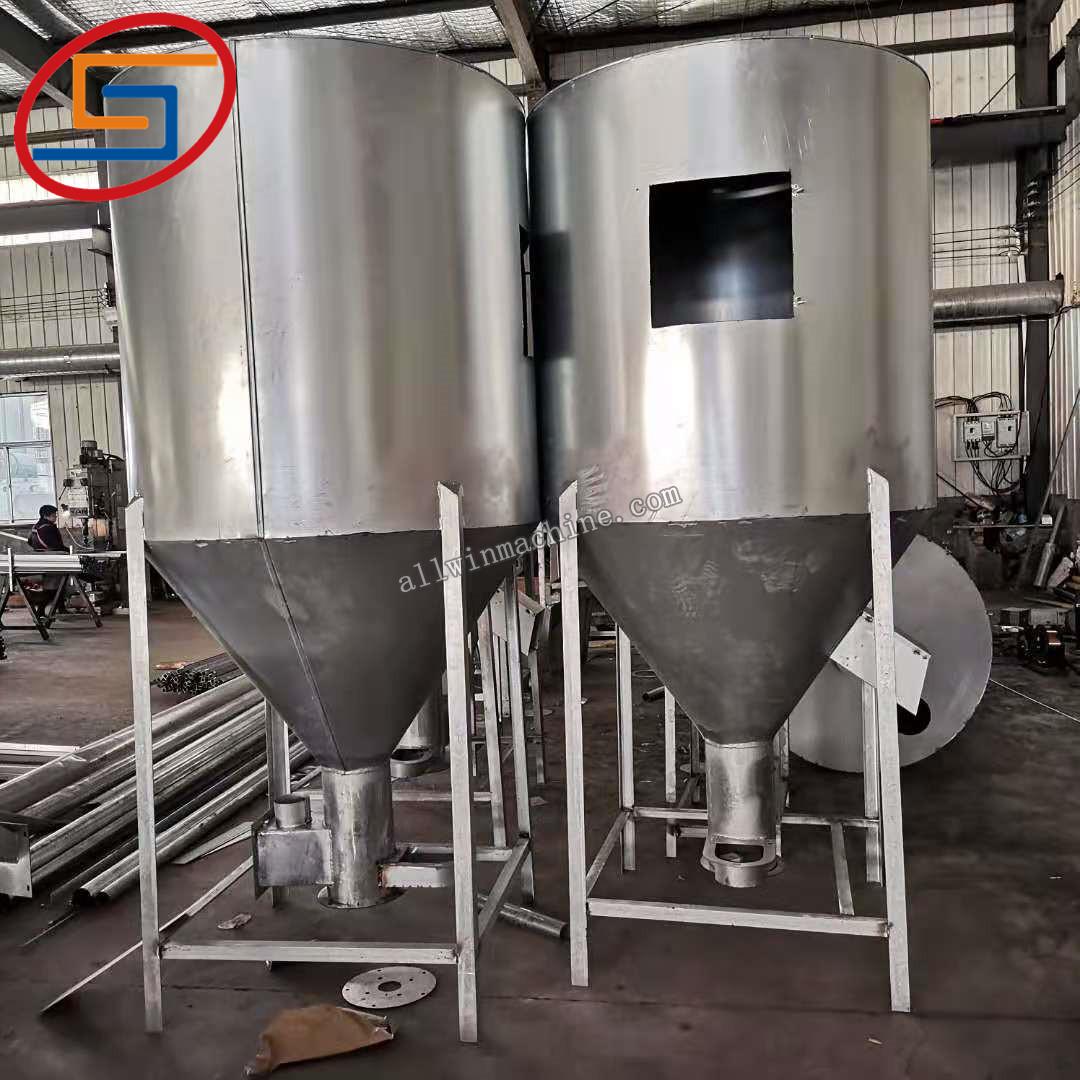

This machine has efficient structure,advanced performance,low power consumption and reliable performance.Vertical feed mill grinder mixer an ingenious design that connects the hammer mill to the mixer. This is a very space efficient, economical but widely used feed processing facility.
Advantages
1. feed grinder and mixer can crush the grains and mix different powders for feed mill grinder mixer.
2. feed mill grinder mixer is specially designed for small farmers, medium and industrial feed processing plant, chicken farm, feeding industry, etc.

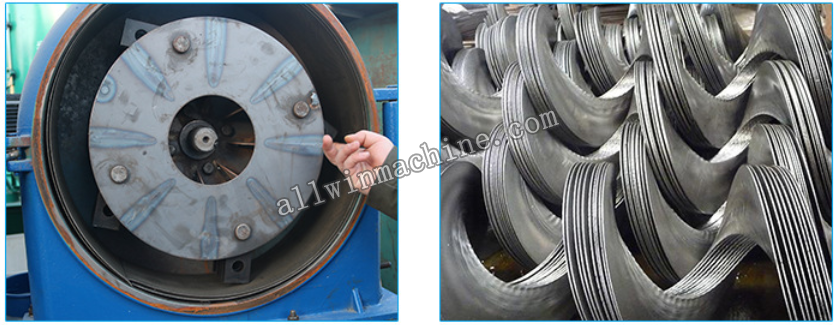

3. Screw conveyor, crusher, and mixer are concentrated in one, it takes small place and easy to install and operate
Specification
|
Model |
ALW-500 |
ALW-750 |
ALW-1000 |
ALW-1500 |
ALW-2000 |
|
Crushing Power(kw) |
7.5 |
7.5 |
7.5/11 |
11 |
15 |
|
Mixing Power(kw) |
3 |
3 |
3 |
4 |
5.5 |
|
Capacity(kg/h) |
500 |
750 |
1000 |
1500 |
2000 |
|
Dimension(m) |
1.25*1.65*2.5 |
2.4*1.65*2.65 |
2.4*1.75*2.8 |
2.75*2.1*2.95 |
2.8*1.62*3.5 |
Instructions:
1. After the mixer and grinder are installed, check the fastening of the fasteners, and tighten them if they are loose. It is necessary to check whether the belt tightness is appropriate. The factory equipment will have air vents. Tie them in a cloth bag. The cloth bag is made of a thinner cloth that can diffuse the wind and filter the flour. The longer the bag, the better (80 cm to 2 meters). Poor air dissipation will affect the efficiency of the equipment.
2. Before starting the pulverizer (pay attention to the situation when there is no power), first turn the rotor by hand to check whether the hammer and rotor are flexible and reliable, whether there is any collision in the shell, and whether the rotation direction of the rotor is consistent with the arrow on the machine. Refers to the same direction, whether the motor and the powder machine are well lubricated. Then re-energize, run idling for two or three minutes, and then put it into use if there is no abnormality.
3. Put on a white leather tube! The white leather tube is 3-5cm away from the bottom end of the material pit (the most ideal height, which is helpful for the suction of raw materials)
Second, start the mixing motor first, and then start the crushing motor. Add auxiliary material additives from the feeding hopper, crush the main material and auxiliary material at the same time, until the main material and auxiliary material are processed and input into the machine warehouse, continue to stir for 3~5 minutes, after the finished product is bagged, the next batch of production is continued.
4. Remove debris, metals, and sand from the materials in time to avoid damage to the parts.
Fourth, please add butter to the refueling part once the equipment is used for 50 hours continuously, and check in time
