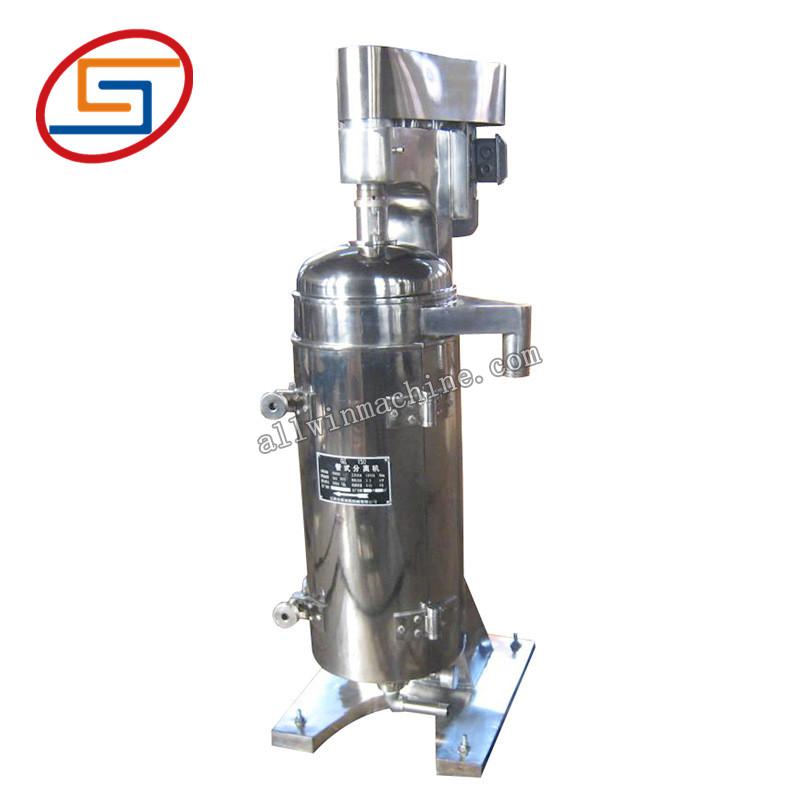

Tubular centrifuge working principle:
The main shaft drives the drum to rotate at high speed around its own axis, forming a strong centrifugal force field in the drum. The material enters the drum from the bottom inlet. Under the action of centrifugal force, the material is forced to flow upward along the inner wall of the drum, and two concentric liquid rings are formed in the axial direction according to the density difference. The light liquid is discharged from the light liquid port near the axis and recovered through the light liquid collecting pan. The heavy liquid is discharged from the heavy liquid port near the drum wall. , Manually cleared after shutdown.

Tubular centrifuges main purpose:

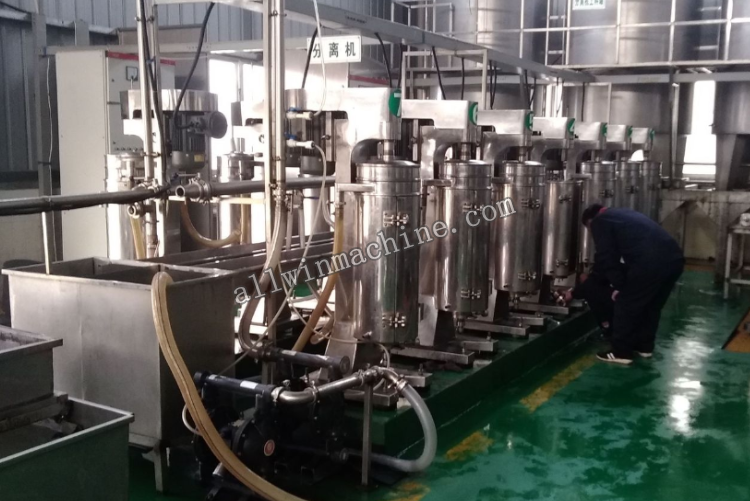

It is used for the separation of emulsions with little difference in density between liquid and liquid phases. It is widely used in biomedicine, Chinese medicine clarification, bacterial recovery, blood products, plant extraction, health food, beverage, chemical industry and other industries.

Tubular centrifuges main feature:
1. Vertical structure, small footprint.

2. Flexible shaft system, overhanging support of the drum, upper transmission.

3. The transmission mechanism has a fully enclosed cover to prevent dust pollution during transmission.

The inner and outer surfaces are mirror-polished, and the surface roughness can reach Ra0.2-0.4um, which complies with GMP specifications.

Item		GQ(F)L45	GQ(F)L75	GQ(F)L105	GQ(F)L125
Drum	Inner diameter (mm)	45	75	105	124
	Effective height(mm)	280	430	730	735
	sediment capacity(L)	0.45	2	5.5	7.4
	Rotating speed(r/min)	28000	20000	16000	15000
	Max. Separating factor	19800	16770	15025	15500
Material inlet pressure (Mpa)		>0.05	>0.05	>0.05	>0.05
Production capacity(Kg/h)		~100	~500	~1000	~2000
Motor	Item	Universal motor	Y90S-2	Y90L-2	Y(B)112M-2-B5
	Power(Kw)	0.6	1.5	2.2	4.0
	Rotating speed(r/min)	4500	2840	2840	2890
DimensionL×W×H(mm)		580×650×750	950×1230×1600	800×1200×1600	1010×510×1715
Weight(Kg)		120	300	400	565
