Working Method

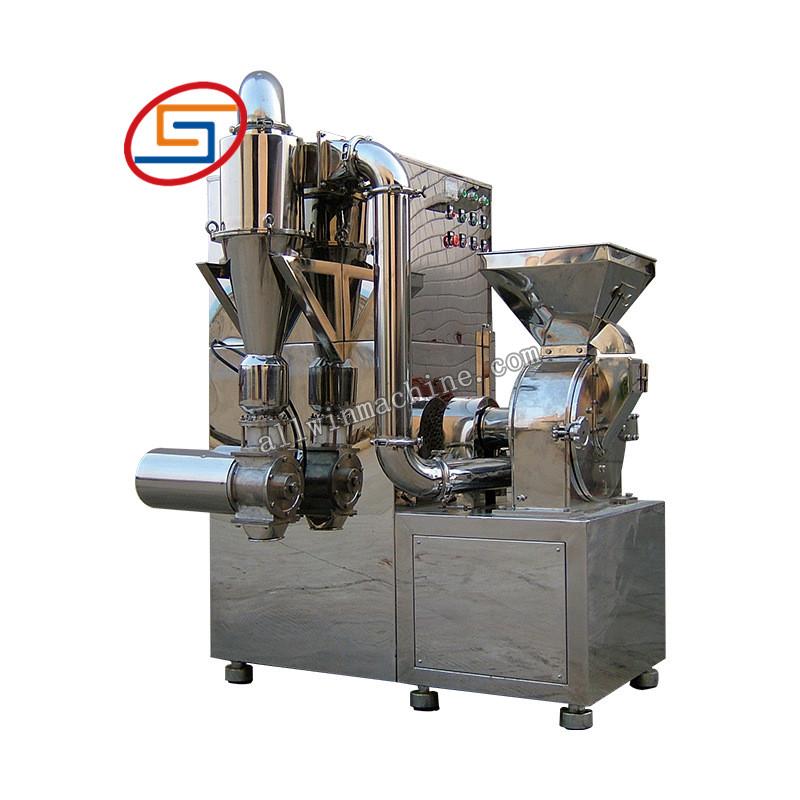

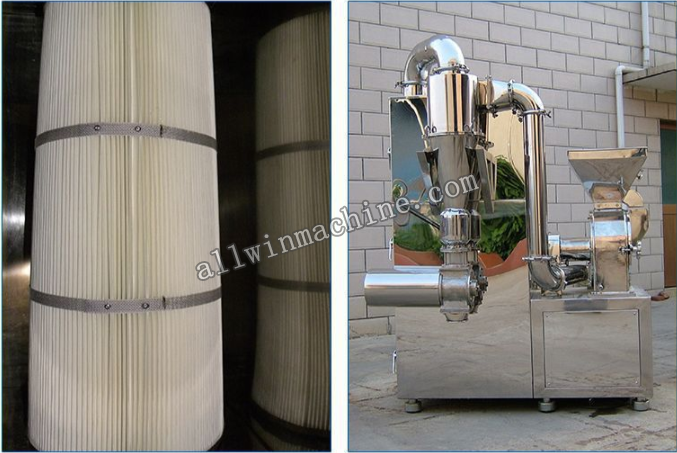

The machine is composed of feeder, grading wheel, pulverizing blades,gears,pulverizing motor, discharging gate, fans, collection box,dust collection box and etc. Any raw material,being fed into the grind chamber through the upper feeder, is pulverized by high-speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate.The high-speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber.The dust from grinding is filtered and recycledvia the cloth bag or filter of the dust absorption box.The whole machine,designed according to"GMP"standard,is made of stainless steel,with the features of easy structure,convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.

Main Application
The machine is applied in industries such as pharmaceutics,foodstuff,chemical and etc,with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicine with fibers and those with oil.

Technical Data
