High-speed Mixing Granulator

Product description: working principle The powder material and the binder are fully mixed from the bottom mixed slurry into a wet soft material in a cylindrical container, and then cut into uniform wet particles by a sid
INQUIRY

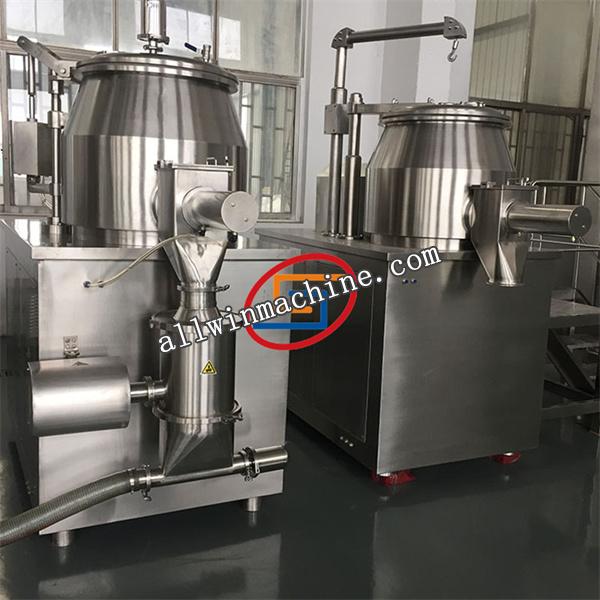

High Speed Mixing Granulator:
The powder raw material and adhesive in a cylinder are mixed fully at the bottom to becmome a humid soft material.

The it is cut through high-speed crusher and become uniform granules.

The pelletizing machine is the latest developed a new generation of wet mixing granulator, it is at home and abroad on the basis of the existing pellet mill uses a lot of the latest technology, reasonable GHL machine structure, easy to use, fully functional, fully embodies the perfect combination of technology and equipment. Powder material with a binder in a cylindrical container and mixed thoroughly by the bottom step mixing paddle into moist soft material and then cut by the side of the high-speed smash paddle uniformly wet granules.

Performance characteristics
◎The machine adopts a horizontal cylindrical structure with a reasonable structure.
◎Pneumatic and sealed drive shaft, which can be switched to water during cleaning.
◎Fluidized granulation, the granulation is approximately spherical, and the fluidity is good.
◎Compared with the traditional process, 25% binder is reduced, and the drying time is shortened.
◎Each batch only needs 2 minutes for dry mixing and 1-4 minutes for granulation. The work efficiency is increased by 4-5 times compared with the traditional process.
◎Completed in the same closed container, dry mixing-wet mixing-granulation, the process is shortened.
◎The entire operation has strict protection measures.
◎It can be made into a jacket type according to user requirements.

Type	A	B	C×D	E	F
50	320	950	1250×800	970	1650
150	420	1000	1350×800	1050	1750
200	500	1100	1650×940	1450	2050
250	500	1160	1650×940	1400	2260
300	550	1200	1700×1000	1400	2310
400	670	1300	1860×1100	1550	2410
600	750	1500	2000×1230	1750	1610

name	50	150	200	250	300	400	600
Yield(kg)	15	50	80	100	130	200	280
Mixing speed(r.p.m)	200/400	180/270	180/270	180/270	140/220	106/155	80/120
Hybrid power(kw)	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
Cutting speed(r.p.m)	1500/3000
Cutting power(kw)	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
Compressed air consumption(m3/min)	0.6	0.9	0.9	0.9	1.1	1.5	1.8
