  • Product description: Main Application: The machine is used in the pharmaceutical, food, granular, chemical, solid beverage and other industries to make the stirred materials into the required particles, especially suitab
  • INQUIRY

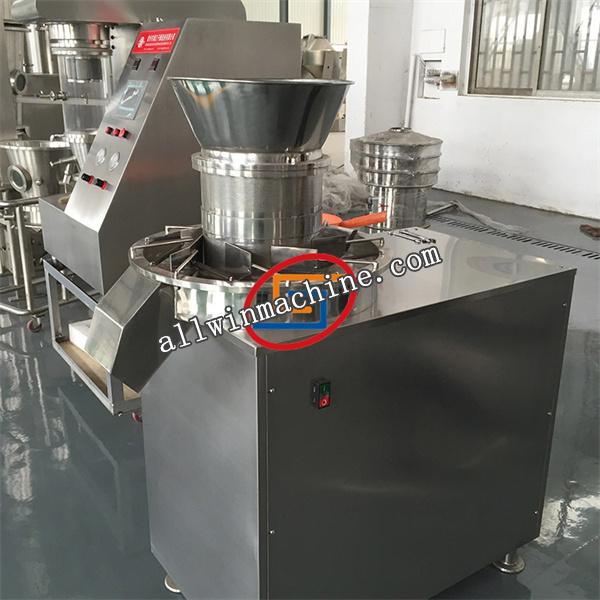

Rotary granulator is mainly used in the pharmaceutical, food, granular, chemical, solid beverage and other industries to make the stirred materials into the required particles, which is especially suitable for materials with higher viscosity. All parts of this machine in contact with materials are made of stainless steel, with beautiful appearance, reasonable structure, high granulation forming rate, beautiful granules, automatic discharging, and avoiding the breakage of granules caused by manual discharging.


Features:
Discharged by rotating tray and equipped with cutting knife, the efficiency of this machine is 2-3 times than swinging granulator. With simple structure, easy to operat eand move,it is one of the ideal granulation equipment,which is also reach the GMP standard. An automatic discharge reduces materials accumulation. Water cooling system is optional. Suitable for semi-dry powder and viscous material, food solids drinks, chicken powder and so on.

Model

ZK-160

ZK-200

ZK-300

ZK-500

Paddle Diametere

158mm

198mm

268mm

500mm

Screen Mesh Diameter

1.2-3mm

1.2-4mm

1.2-4mm

1.2-8mm

Screen Installation Diameter

160mm

200mm

270mm

500mm

Motor Power

2.2KW

4KW

7.5KW

15KW

Paddle Rotation Speed

55r/min

45r/min

45r/min

45r/min

Capacity

20-80KG/H

80-200KG/H

100-350KG/H

100-750KG/H

Overall Dimension

950*500*1000mm

1000*500*1030mm

1250*680*1250mm

1600*1200*1580mm
