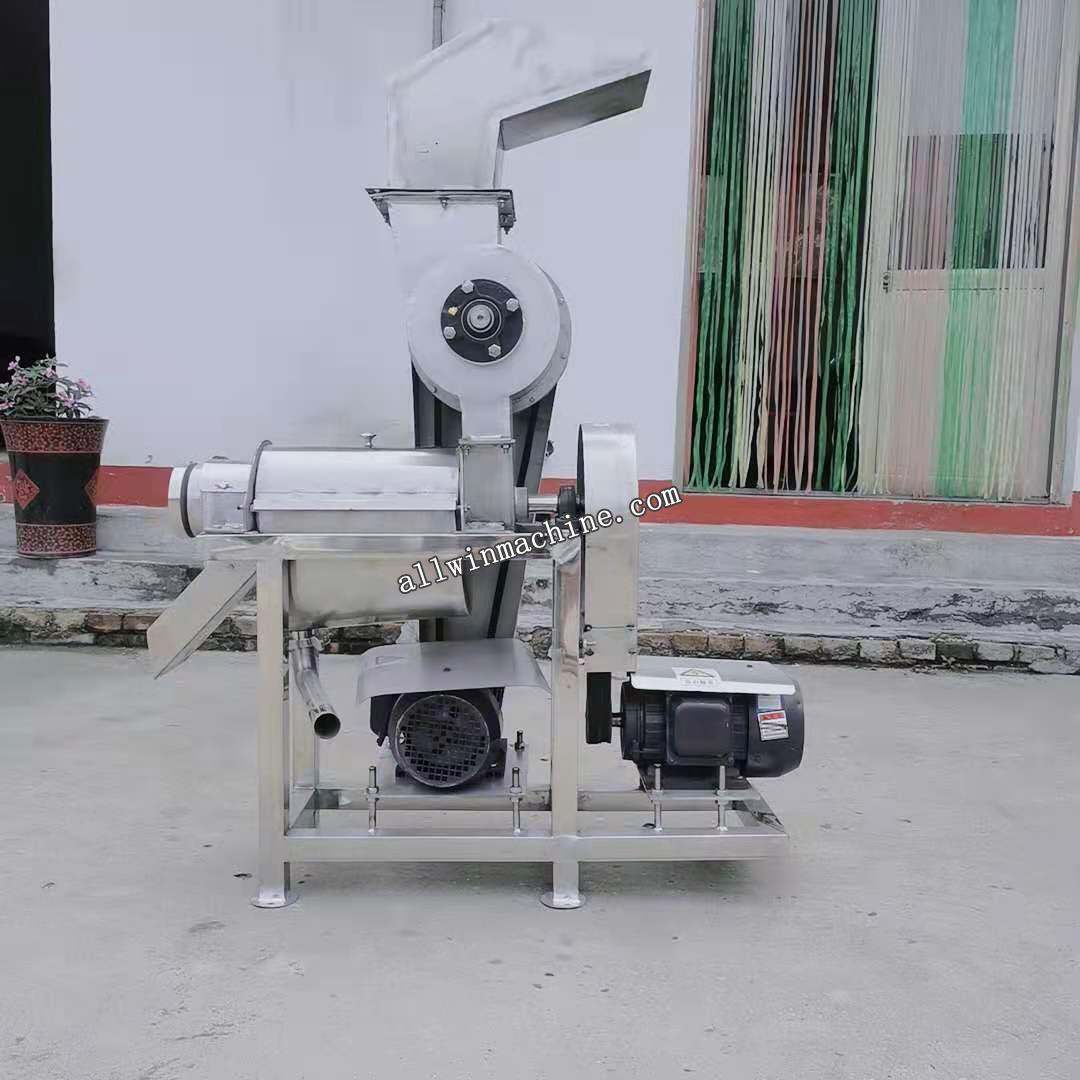

Application of vegetable and fruit juicer machine/ Juice Extractor

(1) This juice extractor is suitable for extracting juice from grape, tomato, fruits and vegetables. Separating residues and pulps from seedless

(2) Its range of extracting ratio is very wide. The space between screw stem and cylinder can be adjustedcaccording to different material extracted.

Working principle:

When the raw materials are added into the material feeding hopper, they receive pressure under the boosting of the spiral and the extracted juices will flow into the juice container through the filter screen, and the waste materials will be discharged through the ring interval formed between the spiral and the pressure adjusting taper part. The movement towards the axial direction by the pressure adjusting head can adjust the size of interval so as to adjust the juice extracting rate.

Features  of vegetable and fruit juicer machine

(1).screw propelling and extruding;

(2).Slag discharge part improved, suitable for pressing high-fiber materials such as leaf vegetables etc;

(3).Automatically finishes the processes of juicing and slagging for fruits and vegetables, such as berries and pome fruits etc.

(4). Various sieve diameters for selection (0.25-8 mm)

(5). It can be combined with production line and also single machine production is available.

Technical Parameters of vegetable and fruit juicer machine
