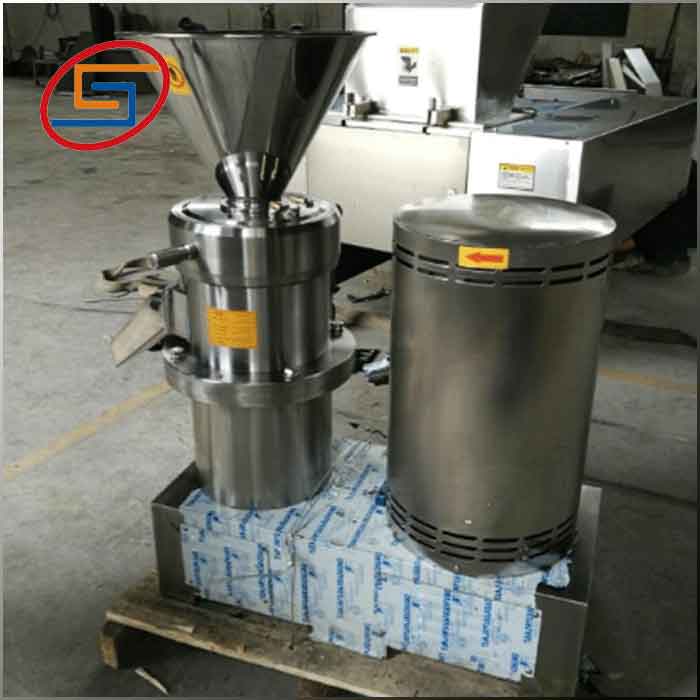

Description of bone Paste milling machine:

Paste milling machine works through different shapes of stator and rotor,the stator and rotor will relative motion at the high speed rolling,when the materials will be grinded at the self-possessed,air-weight,and centrifugal force.When adjust the gap of the stator, the materials will bear powerful shearing force,friction force,impact force and high-frequency vibration,the material will be crushed and grind and mixed well,then can get the ideal products.

Application

The machine can processed poultry bone and skin, such as chicken bone, duck bone, pig bone, cattle and sheep bone , etc. Also pig skin, chicken skin and all kinds of fish, meat,etc. Widely used in all kinds of sausage, ham, lunch meat, meatballs, pet food, frozen food, food and beverage ingredients, bone soup, biological pharmaceutical and other industries.

Machine Feature
1. The grinding head is made of high quality stainless steel processed by special heat treatment.
The grinding head is of great abrasion resistant and long service lifespan.

2. After grinding, the nutrition of the material is well-kept,
The material can kept long and the grinding effect good.
3. The grinding head can be adjusted or changed according to different material.
4. The machine is easy to operate and maintain.
5. The whole machine is made of 304 stainless steel.
6. Compact structure, stable performance, long service lifespan.

Name	Meat Paste Milling Machine Series
Model	GN-80	GN-130	GN-180	GN-240	GN-300
Output fineness ( mesh )	50-100	100-200	100-200	100-200	60-200
Capacity (kg/h)	50-80	200-500	500-1000	1000-3000	600-1800
Motor (Kw)	4	11	18.5	37	75/90
Weight (Kg)	210	400	450	1300	1600
Dimension (cm) L×W×H	68*38*93	99*44*110	99*44*118	135*60*140	1440*630*1420
