Introduction

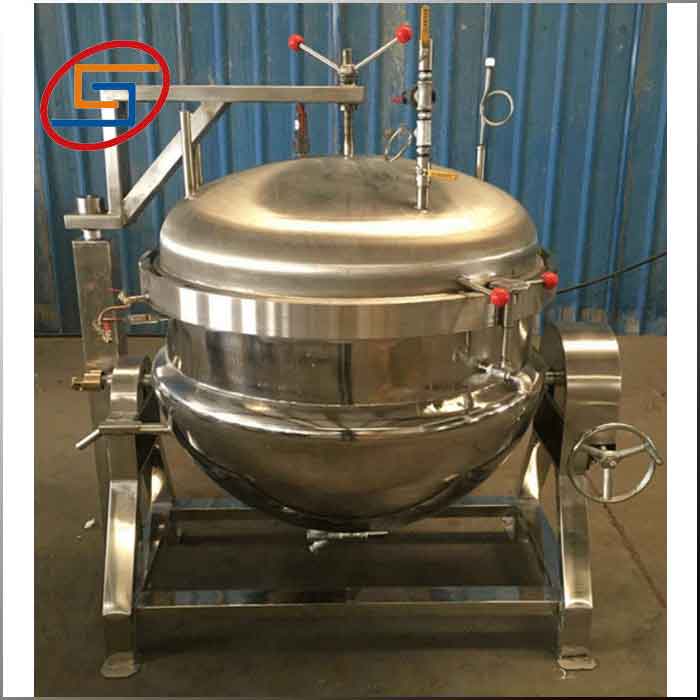

Jacket kettle can be devided into fixed and inclinable type, heating source can be choose electric

,steam, heat-conducing oil or natural gas. heated area is large, heat efficiency is high,  rise in

temperature of goods is quickly,heating evenly and is easy to control the heating temperature, and

dispose advanced stirer, can be able to withstand greater torque, design material flip key blade to

scrape-walled in the kettle, flip mixing, stir evenly, don’t stick the bottom of the pot, the production

efficiency is high. Widely used in the food processing and brewage of the jam, jujube paste, malt sugar,

dairy and canned food, chemical and industry deep process, steaming and boiling usage.

Usage:

Jacket kettle is widely used in food processing ,heating, mixing as well as stirring . Such as jam, paste ; meat products ,condiments etc.

specification

Model	AW-100	AW-200	AW-300	AW-400	AW-500	AW-600
cubage(L)	100	200	300	400	500	600
Diameter(mm)	700	800	900	1000	1100	1200
Material	SUS304/Q235B
Design temperature	147°C
Experiment pressure	0.44Mpa
Design pressure	0.35 Mpa
