Introduction

fruit pulping machine is mainly used for tomato, onion, apples, peppers, strawberries, blackberries, carrots and other materials broken.

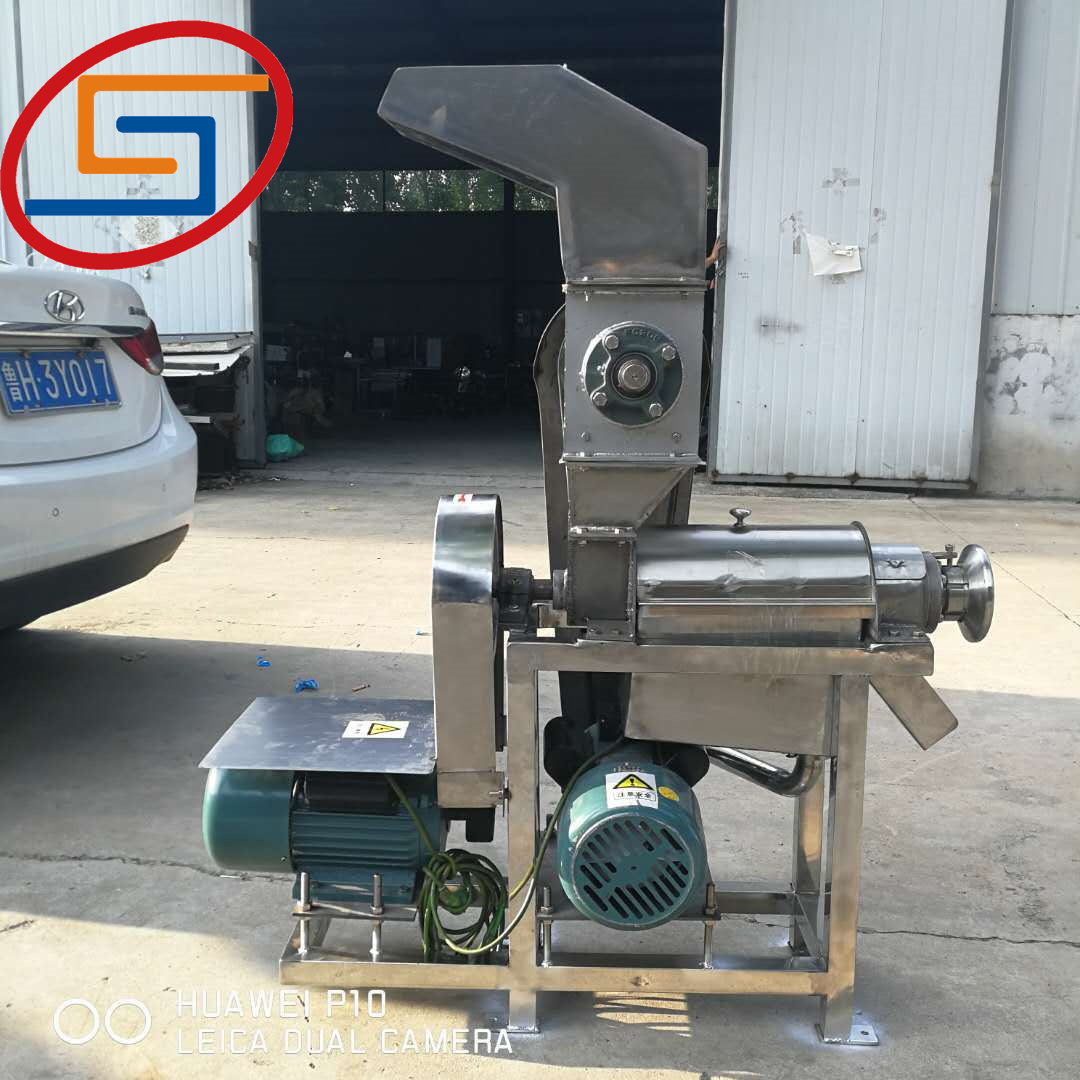

Machine is made of  the hopper, side cover, body, spindle, bearing, motor, rack, hopper and other components.Work when the motor by a pile of pulleys driven constant spindle rotation, the spindle is equipped with flying knife high-speed rotation. The material is free to fall into the hopper by the hoisting machine and is told to rotate the chopper. Due to the centrifugal force, the material falls from the sieve of the waist hole into the separate tank and is pumped by the feed pump Under the process.

Features

1. The equipment is mainly suitable for stoning, pulping and automatic separation of drupe fruits after pre-boiling.

2. Used in beating and residues discharging of fruits and vegetables, automaticresidues discharging.

3. Suitable for crushing mango, potato, kiwi fruit, strawberry, apple, pear and softening maybush, jujube.

4. Can complete peeling, pulping and separating cornel, seeds in one machine

5. It can also squeezing juice from catted green vegetables, celery, separating vegetables ribs. It is the ideal products for making jam, juice and vegetable juice.

Technical parameters

1. Voltage: 380V

2. Power: 3KW

3. Process capacity : 600kg-800kg/h

4. Net diameter: 330 mm

5. effective length of screen: 595 mm

6. scraper row number: 3 rows

7. number of scraper: 550 r / min

8. scraper spiral angle: 0 ° ~ 15 ° ( adjustment)

9. mesh hole diameter: 1 to 5 mm

10. motor : 2.2KW

11. weight: 150 kg

12. Dimensions: 1000mm*700mm*1100mm
